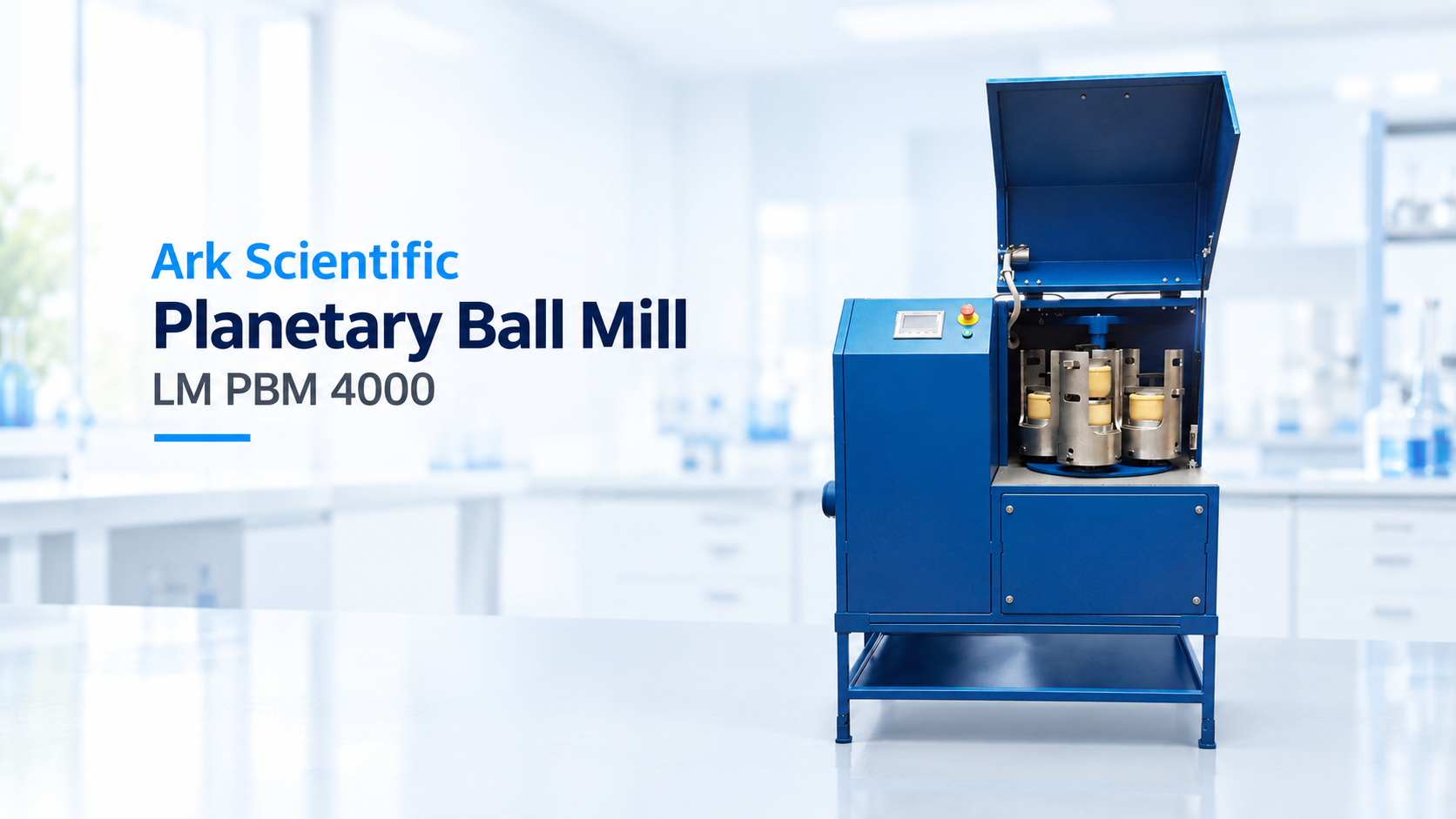

The Ark Scientific Planetary Ball Mill LM PBM 4000 is a high-performance laboratory grinding machine designed for fine grinding, mixing, and homogenization of various materials. It is suitable for research laboratories, material testing facilities, quality control departments, and industrial research and development applications. With programmable operating parameters, multiple grinding jar options, and efficient grinding technology, the LM PBM 4000 supports consistent sample preparation for different laboratory requirements.
The machine is designed to process soft, hard, brittle, and fibrous materials, making it a versatile solution for laboratories that require precise particle-size reduction.
What Is the LM PBM 4000 Planetary Ball Mill?
The LM PBM 4000 is a planetary ball mill developed for high-energy fine grinding. It uses specially designed grinding jars and grinding balls to reduce sample materials into fine powders. Depending on the material and operating conditions, it can achieve a final fineness of approximately 1 µm, with finer results possible for suitable colloidal grinding applications.
Its capacity to accommodate up to eight grinding jars allows laboratories to process multiple samples or batches efficiently. The system supports both dry and wet grinding, providing flexibility for different sample preparation methods.
Working Principle of the LM PBM 4000
The LM PBM 4000 Planetary Ball Mill operates using two simultaneous rotational movements. The grinding jars rotate around a central sun wheel while also rotating around their own axes. This planetary movement generates centrifugal forces and intensive interactions between the grinding balls and the sample material.
During operation, the grinding balls impact and roll against the sample, gradually reducing particle size through impact and friction. The speed ratio influences the movement of the grinding media and helps determine the grinding performance.
Programmable grinding settings and automatic direction reversal support controlled operation and help reduce material agglomeration during processing.
Key Features and Benefits
The Ark Scientific Planetary Ball Mill LM PBM 4000 offers several features for efficient laboratory sample preparation:
- High-efficiency grinding: Designed to achieve fine particle sizes for research and analytical applications.
- Multiple grinding jars: Accommodates four or eight grinding jars, depending on the configuration.
- Flexible jar capacities: Supports grinding jars ranging from 10 ml to 500 ml.
- Programmable controls: Allows digital adjustment of grinding duration and other operating parameters.
- Automatic direction reversal: Helps reduce agglomeration during grinding.
- Multiple jar materials: Options include stainless steel, hardened steel, tungsten carbide, agate, zirconium oxide, and other suitable materials.
- Dry and wet grinding: Supports different sample preparation requirements.
- CE certification: Provides an additional conformity reference for equipment selection.
These features help laboratories select appropriate grinding conditions and improve the repeatability of sample preparation.
Applications of the LM PBM 4000 Planetary Ball Mill
The LM PBM 4000 is suitable for various research and testing applications. Common sample materials include plant materials, seeds, wood fibres, concrete, gypsum, sand, stone, cement clinker, and selected organic or inorganic waste materials.
It can support material research, chemical analysis, mineral sample preparation, ceramic research, quality control, and mechanical alloying studies. Researchers can also use planetary milling for mixing and homogenizing suitable materials.
The choice of grinding jar and grinding balls is important, particularly when sample contamination must be minimized or chemical compatibility is required.
Technical Specifications
The key technical specifications listed for the LM PBM 4000 include:
- Maximum feed size: 10 mm
- Final fineness: Approximately 1 µm; down to 0.1 µm for suitable colloidal grinding applications
- Number of grinding jars: 4 or 8
- Maximum jar capacity: 500 ml per jar
- Minimum jar capacity: 10 ml per jar
- Sun wheel speed: 50–400 rpm
- Motor power: 1500 W
- Speed ratios: 1:-2, 1:-2.5, and 1:-3
- Electrical requirements: 200–240 V, 50/60 Hz
Actual grinding results depend on the sample properties, grinding media, jar configuration, and operating parameters.
Conclusion
The Ark Scientific Planetary Ball Mill LM PBM 4000 is a versatile solution for laboratories requiring efficient fine grinding, mixing, and reproducible sample preparation. Its multiple jar configurations, programmable controls, and wide selection of grinding materials make it suitable for diverse research and quality control applications.
