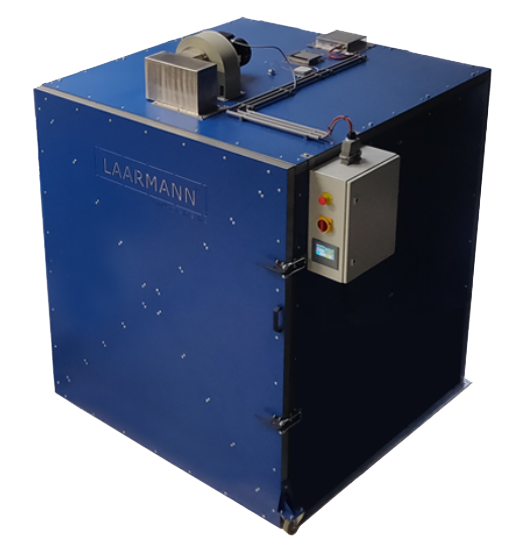

A stainless steel fan assembly is integrated in to the cabinet in a manner which assures the moving air within it is constantly recirculated over the electric heating elements and is evenly distributed within the cabinet. Manually adjustable inlet and outlet vents are provided to allow the air flow through the cabinet to be controlled for optimum drying performance. Each oven is supplied as standard with digital temperature controls incorporating automatic over temperature control with separate thermo- couple and mechanical thermostat circuit
Solidly constructed welded steel frame of heavy gauge rectangular hollow section steel tube clad internally with grade 304 stainless steel and externally with zinc anneal sheeting.
Acoustic Noise Reduction vibration damping composite material.
External surfaces of the cabinet are powder coated.
The cabinet is designed for optimized air circulation.
The floor of the cabinet is of 5mm steel plate.
Digital programmable control unit.
Large diameter, heavy duty industrial castor wheels are fitted to assure the trolley can be readily rolled in and out of the cabinet.
Trolleys with heavy duty wire mesh racks.
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Electrical details | 3x400V, 50Hz |
| Fan | 0.75kW, 1phase 230V 50Hz, 3phase 230/400V 50Hz |
| Internal volume | 5.0 m3 |
| Number of trolleys | 2 x 6 shelves |
| Power | 12 KW |
| Temprature | 20° – 175° |
| Dimensions | 1700x1800x1960 |
