Variable speed setting

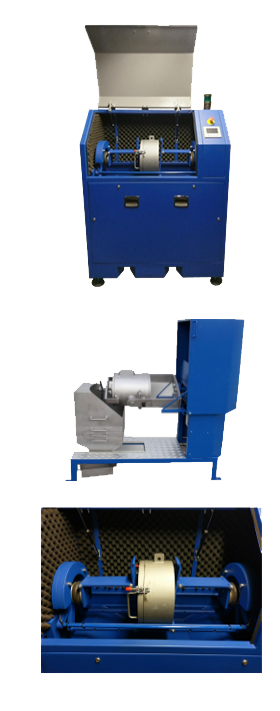

The LAARMANN® ball / rod mill is designed to meet the industrial requirements to grind coal, cement and a wide variety of ores. It is related to the Bond ball mill and Bond rod mill work index. This index is used to calculate the power draw requirements of a rod mill and allows for a more precise calculation of the required comminution energy. The RWI index is used for a secondary crusher product size in the range of 25mm down to 2.1mm. The BWI index is used from 2.1mm down to 100μm, which is the usual product size. The ball / rod mill consists of a gear motor mounted on a high precision solid steel underframe. It is complete with an outlet funnel, a set of separation screens, and a sample collector.
Method of operation:
The mill incorporates a yoke and locking mechanism for easy access to the contents. An appropriate ball or rod charge is provided with the mill. The motor has a solid-state controller to accurately control the drum speed. This controller has internal overload protection and can be used to set different drum speeds. The mill can be adjusted to rotate at variable speed. The lid has a quick release locking mechanism.
Variable speed setting
Standard drum sizes from 1 - 20 litres
Modular drum with an adjustable volume from 1 to 12.7 litre
Ergonomic sample separation set consisting of outlet funnel and screens with handle
Guide rail for easy slide and removal of screen set
Removable sample collector
High precision solid steel underframe, easy to clean
Solid acoustic noise reduction hood with safety switch to stop the motor when hood is opened
Operation control panel
The Bond Crushing Work Index (CWi) describes the competency of the ore at larger particle sizes. It is used for the calculation of the actual crusher power requirements. The test is conducted using a Bond impact tester, which consists of two pendulum-mounted hammers.
Cement, cement clinker, concrete
Coal, coke
Minerals, ores, slags
Soil samples, sludges
Glass, ceramics, corundum
Pharmaceuticals, chemicals
Food, animal food
Creams and emulsions
Paint
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Ambient temperature | 5°C – 40°C |
| Atmospheric humidity | 85% RH |
| Dimensions W x D x H | 1200 x 600 x 1550 mm |
| Max volume of grinding barrel | 42L, volume and shape depending on version |
| Noise emission (without milling balls) | 35 dB(A) |
| Power supply | 230V ± 10% – 50/60Hz |
| Rated power | 800w |
