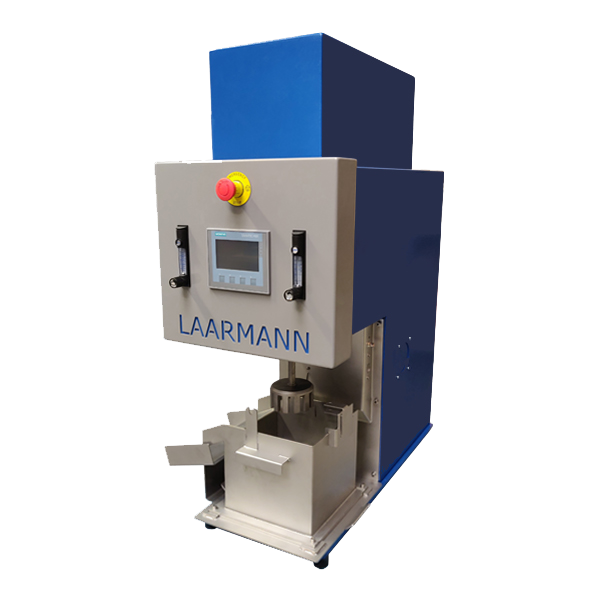

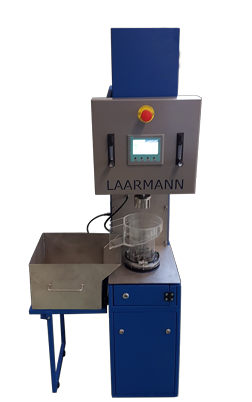

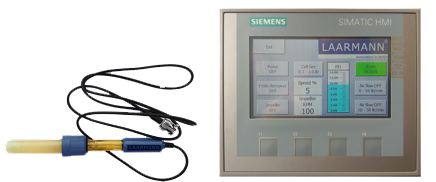

The versatile Laboratory Flotation Bench has been designed to provide an accurate reliable means of re-producing test results. It is ideally suited in duplicating plant processes and operations. The laboratory flotation bench can be used for : • Flotation • Attritioning • Blending • Agitating Several configurations are available for impeller style and diffuser arrangement. All wetted metal parts are made of high quality 316 stainless steel construction. To set up and control the parameters there is a digital touch screen.

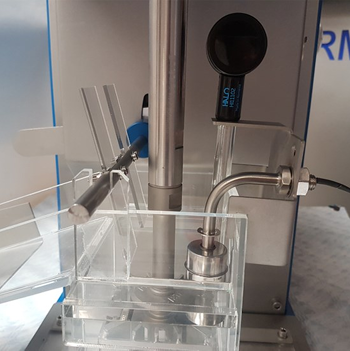

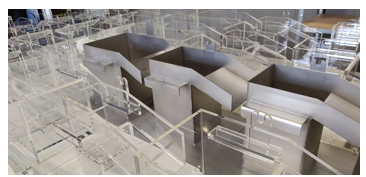

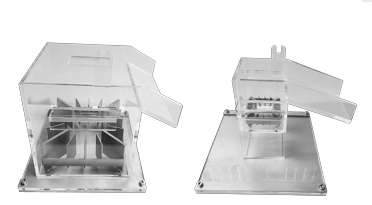

Cells are made from clear acrylic with impellers of rvs 316. The cell will handle materials ground for high temperature flotation or attrition testing, a stainless steel cell and impeller must be used. We can produce different volumes of flotation cells from 0,20 litres up to 7 litres
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Dimensions (length x width x height) | 839 x 480 x 834 mm |
| Compressed air supply | 0 / 50 Ltr/Min |
| Electrical requirements | 0,55 kW |
| Flotation cells capacity | 0,2 – 7 liters |

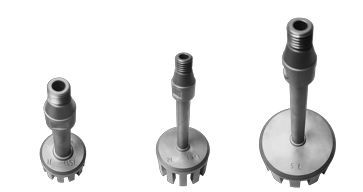

| Impellers | Interchangeable |
| Impeller speed / Electronic digital read out | 100-2000 rpm |
| Weight | 133 kgs |
| Weight | 133 kgs |
| Applications | separation of different materials, particularly minerals, by agitating a pulverized mixture of solids in liquids |
