Quick access to essential system features, including the dashboard for an overview of operations, network settings for managing connectivity, system logs for tracking activities.
Filling the set with 5–10 ml of milled sample and insert the plunger on top
Start the process of pressing using the digital touchscreen display
The automated pre-set program will start the cycle
After releasing the pressure, removing the die set is not needed: pull out the bottom slider
Operator then uses the machine to press the pellet down with a little force
Result: nice smooth pellet

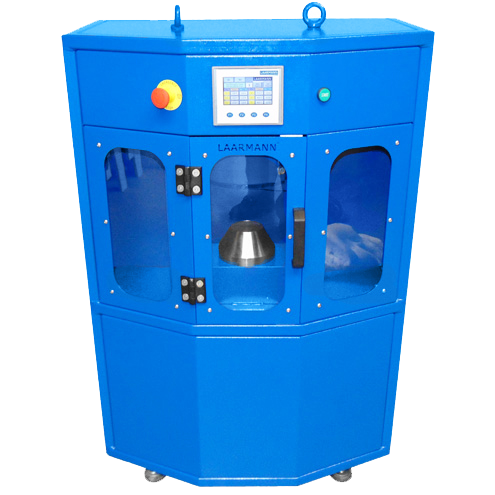

The LMPP40 Tons Pellet Press is a laboratory machine used for pelletizing of grinded material for X-ray analyzing purposes.
Pellets of various thickness and diameters can be produced using the LMPP40 Tons Pellet Press.
Other available models in the market use pre-set hydraulic working principle, having no possibility to control the pressure during pressing the pellet. With the LMPP40 Tons Pellet Press the operator can visualize in the display which pressure is set and what is the time frame used this pressure.
This increases a lot the quality of the pallet and also the reproducibility of the pallet making the analyses more reliable.
Up to 10 different programs are adjustable setting the pressure in relation to the time. A program consist out of 1 to 6 steps. Within each step the press power and time can be adjusted. For each material there is a different optimum pressure, which needs to be learned by doing.
The automated LMPP40 Tons Pellet Press can press pellets of a diameter variating from 13 up to 50mm. Our die sets are made of high quality stainless steel. To improve the surface of the pellet our the plunger is high graded mirror polished.
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Ambient temperature | +5°C – +40°C |
| Atmospheric humidity | 85% RH |
| Dimensions W x D x H | 500 x 850 x 1150 mm |
| Max lenght | 84 mm |
| Noise emission | 70 dB(A) |
| Power supply | 220V ± 10% – 50/60Hz |
| Programs | Up to 10 different programs |
| Rated power | 3200W |
| Timer | 0-20 sec in 1 sec steps. Each level is controllable. |
| Weight | 200kg |
