Fast, easy adjustment of product sizing
Replaceable stainless steel roll shells and side plates
Heavy-duty spherical roller bearings
Heavy fabricated steel frame
CE-certified

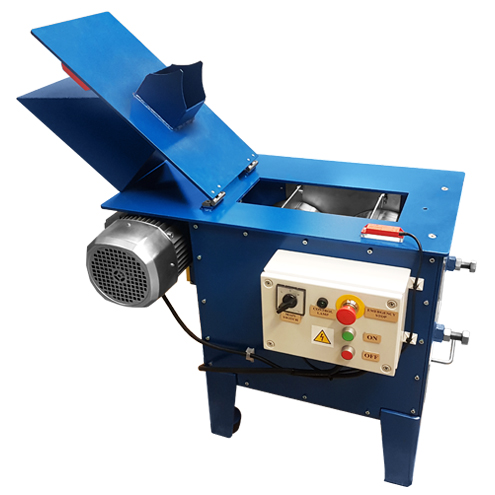

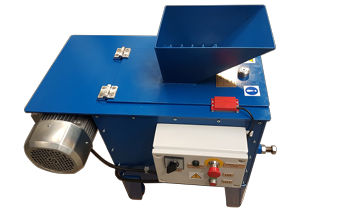

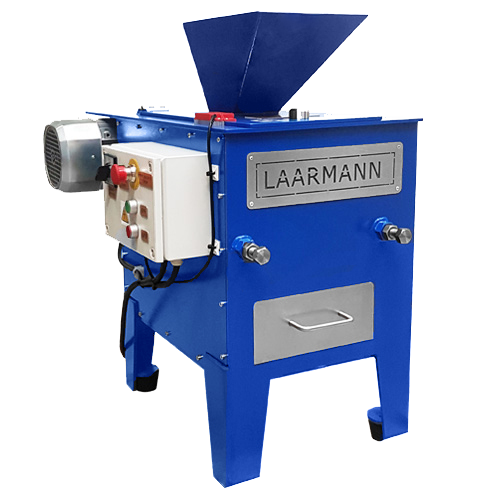

LAARMANN Roll Crushers are typically applied in laboratory or pilot plant applications after primary reduction of the infeed material. Roll crushers operate with a minimum of dust generation and produce a material with a tight size envelope containing a minimum of fines. Designed for rapid, controlled size reduction of ore, mineral or rock prior to metallurgical testing or further milling or grinding the LAARMANN LMRC Roll Crusher has is built with two off same diameter individually. Powered contra-rotating rolls, so the nipping process produces an ideal crushing environment for a wide variety of materials. Product sizing is controlled by an (adjustable) gap setting between the 2 rolls. One roll is heavy duty spring mounted as protection against uncrushable material attempting to pass between the rolls.
Rugged, minimum maintenance design
Heavy-duty spherical roller bearings
Heavy fabricated steel crusher frame & support base
Replaceable stainless steel roll shells and side plates
Compact design with drive motors installed below the crushing chamber
Fabricated feed hopper and dust extraction outlet

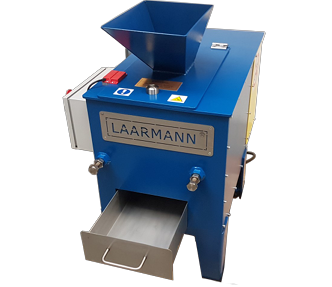

Product drawer
Full drive guarding
Electric pre-wiring with an IP55 enclosed push button & motor protection station
Fast, easy adjustment of product sizing
Ore
Mineral
Rock prior to metallurgical testing
Further milling or grinding
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Approximate mass | 400 Kg |
| End-fineness | Smaller than 1 mm |
| Max Feed Size | 30 mm |
| Optimum reduction ratio | 4 to 1 |
| Power | 1.1 kW (3x400V/ 50Hz) |
| Roll Size (Dia x Width) | 200 x 150 |
| Roller Speed | 380 rpm |
| Standard Roll face | Smooth |
