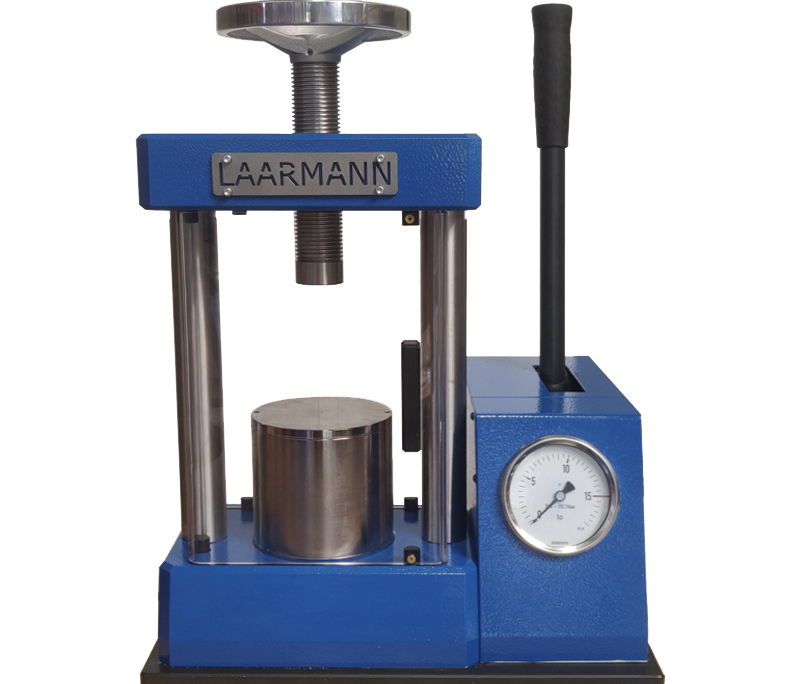

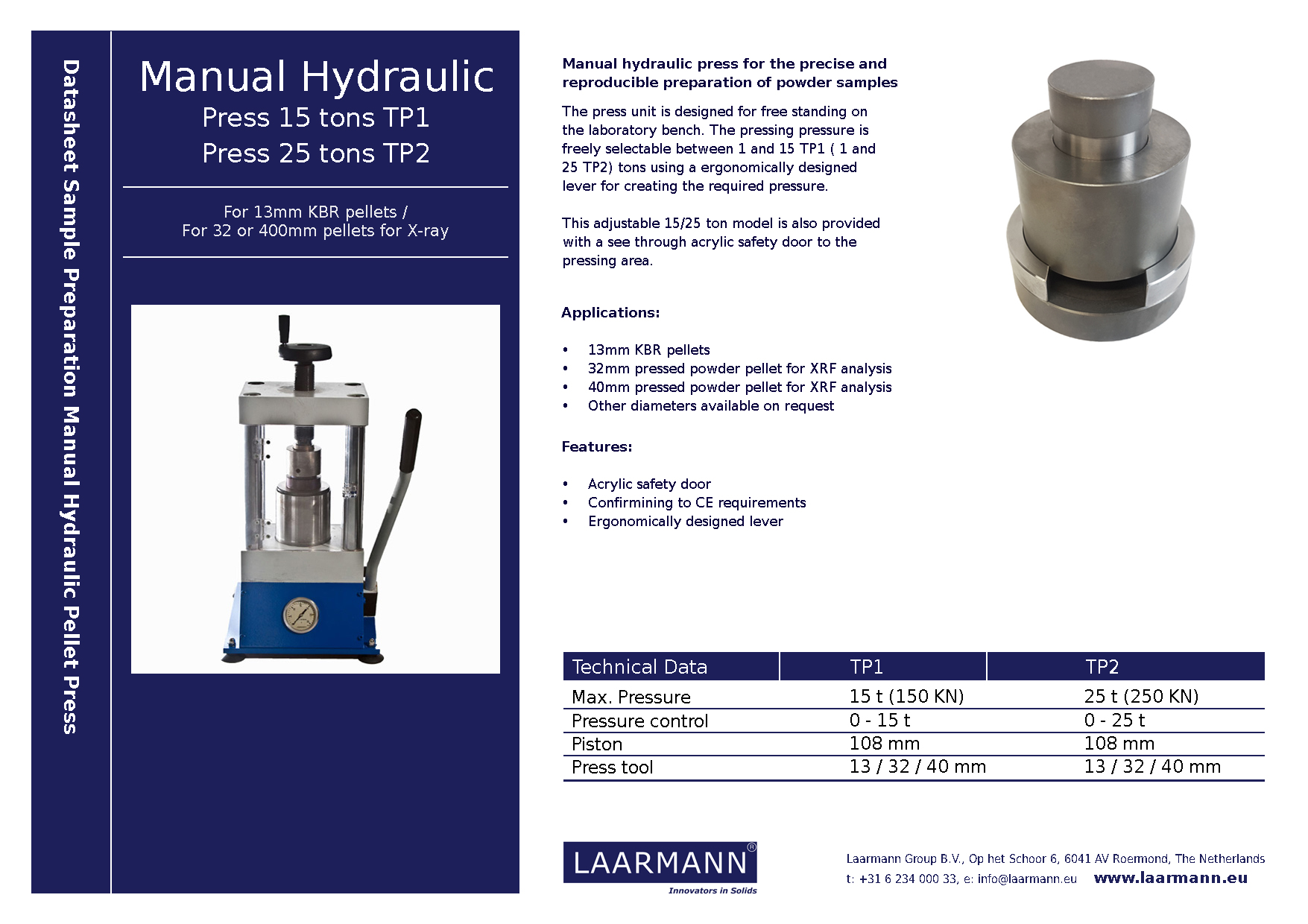

Manual Hydraulic Pellet Press for the precise and reproducible preparation of powder samples. The press unit is designed for free standing on the laboratory bench. The pressing pressure is freely selectable between 1 and 15 tons using a ergonomically designed lever for creating the required pressure.
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Ambient temperature | +5°C – +40°C |
| Atmospheric humidity | 85% RH |
| Dimensions W x D x H | 400x360x300 |
| Display / solution | Analogue, 0,25 T |
| Max pressure | 15 t (150 KN) |
| Piston | 108 mm |
| Pressure control | 0 – 20 t |
| Press tool | 13 / 32 / 40 mm |
| Weight | 42 kg |
| Width between pistons | 150mm |
