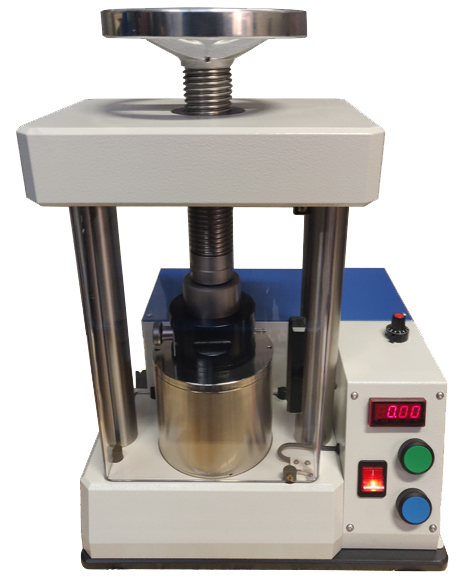

The LAARMANN motorized Hydraulic Pellet Press for frequent and reproducible preparation of small powder samples. The press unit is designed for free standing on the laboratory bench. The pressing pressure is freely selectable between 200 kg to 5 tons that can be changed with steps of 0.01 tons with the digital display.
The LAARMANN compact motorized lab presses are made from solid stainless steel and aluminium construction for the best quality and can be used for different types of powder samples such as grounded soil and various powders and are really easy to operate
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Dimenstions W x D x H | 370x300x538 mm |
| Width between pillars | 150 mm |
| Min. / Max. clear height | 52 mm / 142 mm |
| Display | digital |
| Spindle diameter | 35 mm |
| Max. way of spindle | 102 mm |
| Piston diameter / max. lifting | 105 mm / 22 mm |
| Power supply | 110-230 V / 50-60 Hz |
| Weight | 40kg |
