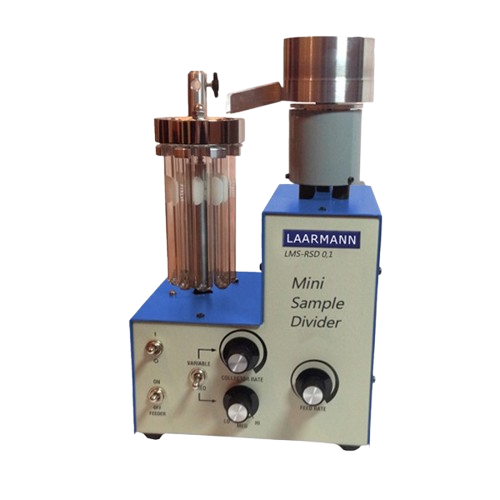

Small model of the rotary sample divider for accurate laboratory sampling results.
The Mini sample divider has a bowl that has a vibratory component under it build in to increase or decrease the feeding speed of the sample
The feed sample is fed at a controlled rate as a falling stream that is divided either into one part or into equal segments by the action of a “circle” of segmental vails being rotated beneath the stream. The unit operates in accordance with internationally recognized sampling protocols.
Will our equipment suit your requirements? Send us a test sample for evaluation. Our application laboratory is pleased to conduct pre-purchase trials on customer free supplied samples.
If you require a test-grinding please click the Questionnaire Milling button and fill out the form.
| Material feed size* | ≤ 2.5 mm |
| Batch size / feed quantity* | ≤ 120 ml³ |
| Number of divisions | 8 (4cm3 & 15cm3) |
| Collector Tube Volume | 4 cm³ and 15 cm³ |
| Vibrator Bowl | aluminum (nickel-plated available) |
| Dimensions | 330x200x160 mm |
