ARK Scientific offers laboratory crushing equipment designed to support efficient sample preparation in research laboratories, mining, mineral processing, and material testing industries. The LMC100D Jaw Crusher is engineered for the rapid reduction of hard, brittle, and tough materials before further grinding and analysis.
For laboratories searching for a Laboratory Jaw Crusher Manufacturer & Supplier in India, equipment reliability, adjustable crushing settings, contamination control, and ease of maintenance are important considerations. The LMC100D combines these practical features to support consistent sample preparation across different applications.

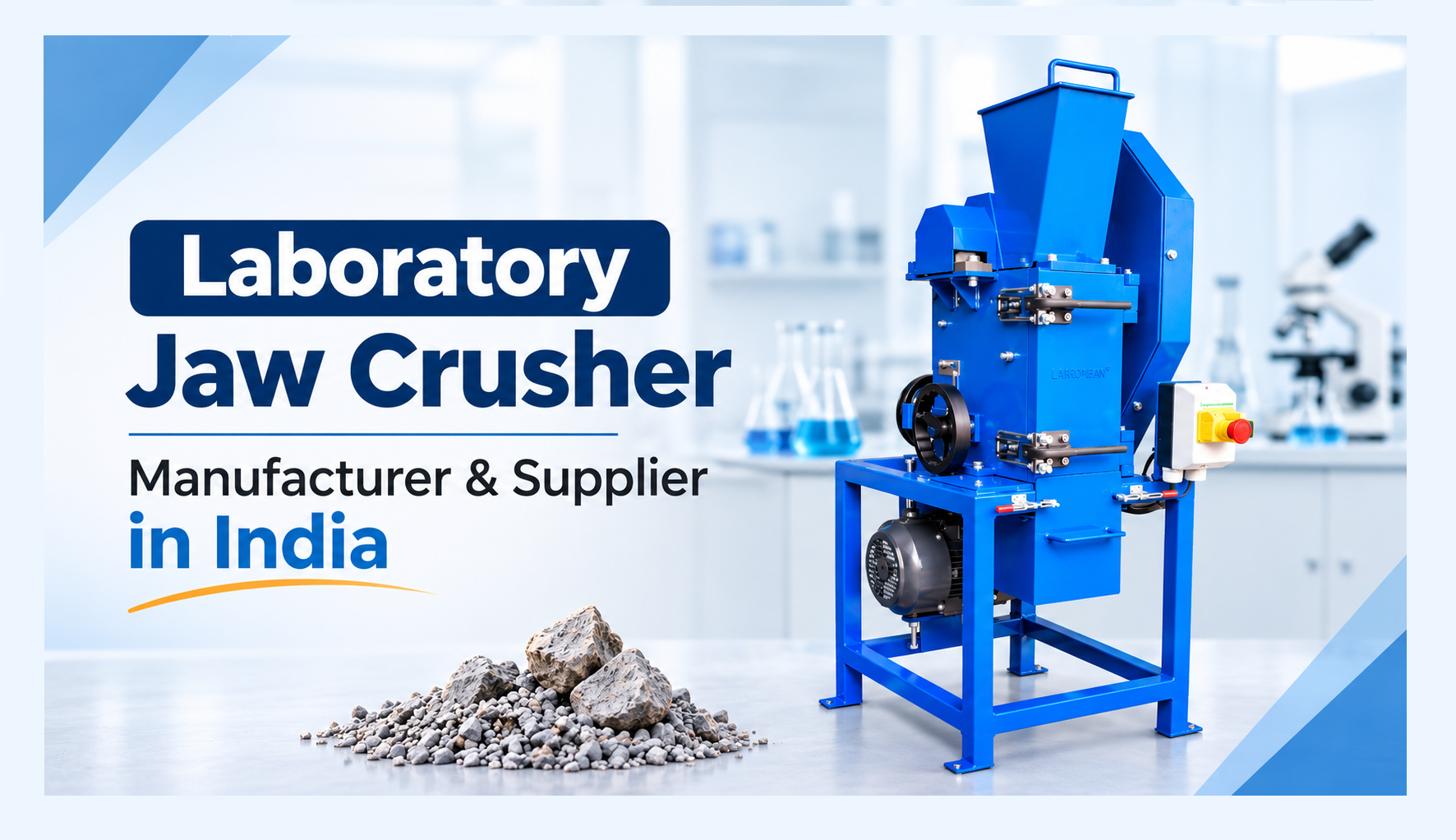

LMC100D Jaw Crusher: Designed for Laboratory Applications
The LMC100D Jaw Crusher is designed for batch-wise and continuous pre-crushing of suitable solid materials, including rocks, soil, and ores. Its crushing chamber uses stationary and moving jaw plates to reduce samples until they pass through the selected outlet gap.
The machine features a jaw outlet adjustment range of 0–30 mm, allowing operators to select the required setting according to the material and application. At minimum adjustment, the specified product fineness is below 2 mm, depending on the feed material and operating conditions.
Key Features of the LMC100D Jaw Crusher
Adjustable Crushing Settings
The handwheel-operated adjustment system allows the jaw outlet gap to be adjusted continuously within the specified range. The visible millimetre scale helps operators select and reproduce settings for different sample preparation requirements.
Multiple Jaw Plate Materials
Sample contamination is an important consideration in laboratory testing. The LMC100D offers jaw plates and side liners in hardened steel, manganese steel, tungsten carbide, heavy-metal-free steel, and stainless steel options. Selecting the appropriate grinding tools helps laboratories address material compatibility and contamination-control requirements.
Convenient Cleaning and Maintenance
The removable infeed hopper and front-door access allow convenient access to the crushing chamber without requiring tools for routine access. This helps simplify cleaning between samples and supports laboratories that process different materials.
The jaw plates and side liners can also be exchanged when necessary, helping simplify routine maintenance.
Efficient Crushing Capacity
The LMC100D is equipped with a 3 kW three-phase motor and has a specified throughput of approximately 250 kg/h. Actual throughput varies according to sample characteristics, feed size, outlet adjustment, and operating conditions.
The machine also includes an external control box with start/stop functionality and a spacious 10-litre sample collector.
Applications of the LMC100D Jaw Crusher
The LMC100D supports sample preparation in several industries:
- Mining and mineral processing: Pre-crushing suitable ores and mineral samples before further processing.
- Geological laboratories: Preparing rock and soil samples for laboratory analysis.
- Metallurgy: Reducing suitable mineral-bearing materials for testing and evaluation.
- Construction material testing: Preparing selected rock and aggregate samples for assessment.
- Research and quality control: Producing samples for subsequent analytical procedures.
The machine can also be used before fine-grinding equipment when smaller particle sizes are required. ARK Scientific's application examples include processing dolomite, stones, calcium-containing materials, and quartz using appropriate equipment configurations.
Technical Specifications
The key specifications of the LMC100D Jaw Crusher include:
- Jaw inlet: 130 × 100 mm
- Maximum feed size: 115 × 90 mm
- Jaw outlet adjustment: 0–30 mm
- Product fineness at minimum adjustment: Below 2 mm
- Approximate throughput: 250 kg/h
- Motor power: 3 kW, three-phase
- Toggle speed: 325 rpm
- Approximate machine weight: 250 kg
These specifications are based on the manufacturer's product information. Actual performance depends on the material being processed and the selected machine settings.
Why Consider ARK Scientific as Your Laboratory Jaw Crusher Supplier?
Choosing the right laboratory equipment supplier involves more than comparing technical specifications. Laboratories should evaluate material compatibility, required output size, processing volume, maintenance requirements, and technical assistance.
ARK Scientific provides product information and an application laboratory facility where customers can submit samples for pre-purchase evaluation. This service can help determine whether the LMC100D is appropriate for a particular sample preparation requirement.
The company also offers a range of sample preparation equipment, enabling laboratories to explore suitable solutions for different stages of material processing.
Conclusion
The LMC100D Jaw Crusher is designed to provide efficient pre-crushing, adjustable outlet settings, convenient cleaning, and flexible jaw plate material selection. These features make it a practical option for laboratories and industrial facilities handling suitable hard and brittle materials.
If you are looking for a Laboratory Jaw Crusher Manufacturer & Supplier in India, explore the LMC100D from ARK Scientific to review its technical specifications and discuss your sample preparation requirements.
